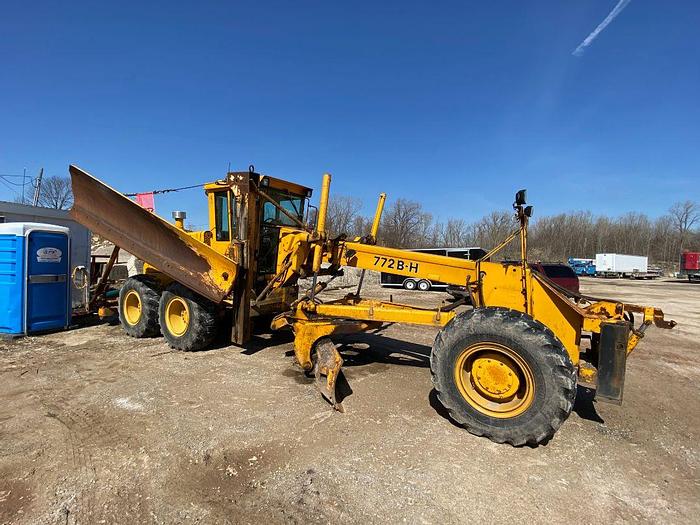

1986 DEERE 772B-H

1986 772B-H Deere Motor Grader, 156" Belly blade, 144" Wing blade, Rake, Overall Length 27.92ft in, Wheelbase 19.59ft in, Tandem Axle Wheelbase 5.06ft in, Front Ground Clearance 1.88ft in, Blade Base 8.76ft in, Height To Top Of Isomount Cab 10.14ft in, Engine Number Of Cylinders 6, Net Power Gear 1-3 155hp, Net Power Gear 4-6 185hp, Net Torque Gear 1-3 522lb ft, Net Torque Gear 4-8 615lb ft, Engine Model 6076A, Power Measured @ 2200rpm, Torque Measured @ 1100rpm, Displacement 466.1cu in, Aspiration Turbocharged, Operational Std Operation Weight - Front Axle 9,400lb, Hydraulic System Fluid Capacity 23gal, Std Operation Weight - Rear Axle 23,100lb, Std Operation Weight - Total 32,500lb, Max Operation Weight - Front Axle 10,650lb, Max Operation Weight - Rear Axle 26,130lb, Max Operation Weight - Total 36,780lb, Fuel Capacity 89.9gal, Tire Size 14.00-24, Steering Articulation Angle 25degrees, Turning Radius 22.6ft in, Transmission Type Power Shift, Number Of Gears - Forward 8, Number Of Gears - Reverse 4, Max Speed - Forward 25.3mph, Max Speed - Reverse 8.6mph, Front Axle Wheel Lean 20degrees, Oscillation - Total 32 degrees, Ground Clearance 1.9ft in, Moldboard Length 12.1ft in, Moldboard Height 24.1in, Moldboard Thickness 0.9in, Side Shift Left 26.9in, Side Shift Right 26.9in, Shift Left 31in, Shift Right 28.6in, Max Reach Outside Tires - Left 85.1in, Max Reach Outside Tires - Right 83.1in, Max Lift Above Ground 18.6in, Blade Tip Angle - Front 49 degrees, Blade Tip Angle - Rear 5 degrees
